| Product |
|
| Model |

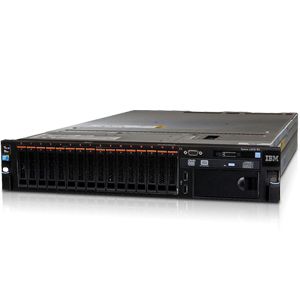

IBM System x3650 M4 |
| P/N |
7915-B2A |
| Form Factor |
Rack/2U |
| Processor |
|
| Processor |
Intel® Xeon® Processor E5-2609 (10M Cache, 2.40 GHz, 6.40 GT/s Intel® QPI) |
| Speed supported |
E5-2609 - 6.40 GHz |
| # of Cores |
4 |
| Intel® Smart Cache |
10MB Cache |
| Intel® QPI Speed |
6.40 GT/s |
| Upgradeability |
1/2 |
| Up to |
Up to two 8-core Intel Xeon E5-2600 series processors |
| Memory |
|
| Installed Size |
1x4GB PC3-10600 DDR3-1333 2Rx4 LP/ Upto 768GB |
| Type |
PC3-10600 DDR3-1333 |
| Maximum |
Up to 768 GB via 24 slots (UDIMM/RDIMM/LRDIMM/HyperCloud DIMM) |
| Storage |
|
| Optical Drive |
DVD RW |
| Hard Drive |
IBM 300GB 10K SAS HDD Hot-Swap (2.5") |
| Graphic |
|
| Graphic Memory |
16MB |
| Expansion slots |
|
| VGA ports |
1 front/1 back |
| USB ports |
2 front/4 back/2 internal |
| PCIe 3.0 Expansion slots (x16/x8) |
4 - 6 PCIe ports or 4 PCI-X (CTO) or 2 double-width PCIe (for GPU) |
| Disk bays (total/hot-swap) |
|
| Disk bays |
Sixteen 2.5" or six 3.5" HDDs or thirty-two 1.8" SSDs |
| Maximum internal storage |
Up to 16 TB (2.5" model) or 18 TB (3.5" model) SAS/SATA |
| Maximum internal storage |
|
| |
Up to 8.0 TB hot-swap SAS or up to 8.0 TB hot-swap SATA or up to 800 GB hot-swap SSD storage |
| Network interface |
|
| |
4 x 1GBe (Std) Ethernet port |
| Power supply (std/max) |
|
| |
550W HS 1/2 |
| RAID support |
|
| Standard |
RAID M5110e 0, 1 & 10 std |
| Supported |
IBM ServeRAID M5110e RAID on motherboard, integrated 6 Gbps hardware RAID-0, -1, -10, and optional RAID-5, -50 or -6, -60 |
| Systems management |
|
| |
IBM IMM2 with optional FoD remote presence, Predictive Failure Analysis, Diagnostic LEDs, light path diagnostics panel, Automatic Server Restart, IBM Systems Director and Active Energy Manager™ |
| Operating systems supported |
|
| |
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere |
