| Product |
|
| Model |

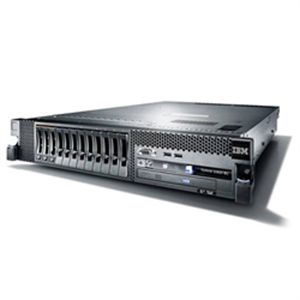

IBM System x3650 M2 |
| P/N |
7947-72A |
| Form Factor |
Rack 2U |
| Processor |
|
| Processor |
Quad-Core Intel® Xeon® Processor |
| Speed supported |
X5550 2.66GHz |
| Cache size |
8MB cache |
| Data bus speed |
1333MHz |
| Feature |
6.40 GT/s QPI, 95W |
| Upgradeability |
1/2 |
| Chipset |
Intel 5520 |
| Memory |
|
| Type |
Registered PC3-10600 (DDR III ECC (Chipkill protection when using x4 DIMMs) |
| Installed Size |
4GB (2 x 2GB) |
| Maximum |
128GB (12x, 22x, 3Ax, 32x, 42x, 52x) |
| DIMM sockets total / available |
16 (8 per processor) / 14 |
| Drive bays total / available |
|
| |
12 / 12 (2.5-inch)
(Requires a Hot Swap SAS-SATA 4 Pac kit) |
| HDD drive bays total / available |
|
| |
2.5-inch HS SAS
500GB – 7.2K
73.4, 146.8, 300GB –
10K
73.4, 146.8GB —15K |
| |
2.5-inch HS SATA
160, 500GB – 7.2K
300GB – 10K |
| |
2.5-inch HS or SS SSD
31.4, 50GB |
| Storage |
|
| Diskette Drive |
None |
| Optical Drive |
CD-RW/DVD-ROM |
| Hard Drive |
IBM 300GB 10K SAS HDD Hot-Swap (2.5") |
| Disk drive technology |
Hot-swap SAS/SATA/SSD; also simple-swap SSD |
| Maximum HDD capacity |
|
| |
2.5-inch SAS/SATA|
6.0TB (12 x 500GB) hot-swap |
| |
2.5-inch SSD
600GB (12 x 50GB) hot-swap |
| Optional RAID controllers supported |
|
| |
ServeRAIDBR10i (0MB Cache)—RAID-0/1/1E(12x, 22x/24x, 3Ax/34x, 32x/44x, 42x/4Lx, 52x/56x)) |
| External disk drives supported |
|
| Adapter slots total / available |
4 /4 |
PCIe x8 Gen 2 physical/
electrical slots (8GBps) |
2 (via optional risers) |
| PCI-X/133 slots (1GBps) |
None standard (optional in place of 1 PCIe slot) |
| 33MHz legacy PCI slots |
None |
| Video ports |
2 (one front, one rear) |
| USB 2.0 ports |
5 (2 front, 2 rear, 1 internal for an optional tape drive, IBM RDX disk storage
device, or USB flash memory key containing an embedded hypervisor) ports |
| Integrated systems management controller |
Yes (IMM) |
| Graphic |
|
| Video controller |
Matrox G200eV (in IMM) standard
(NVIDIA FX580, 1800, or 3800 available for CTO and special-bid models) |
| Video memory |
8MB DDR-2 SDRAM |
| Gigabit Ethernet controller |
|
| |
Broadcom BCM5709 |
| Gigabit Ethernet ports |
2 standard plus 2 optional |
| Serial ports |
1 (rear) |
| Parallel ports |
None (USB-attached) |
| Power supply size |
|
| Video controller |
675W universal, autoswitching, hot-swap |
| Operating systems supported |
|
| |
Microsoft Windows Server 2003 / 2003 R2, Microsoft Windows Server 2008;
RHEL 4 32-bit, RHEL 5 32/64-bit, with and without Xen;
SLES 10/11 32-bit, 64-bit with and without Xen;
VMware ESX Server 3.5 / 4.0, ESXi Server 3.5 / 4.0
|
