Product |
|
Model |

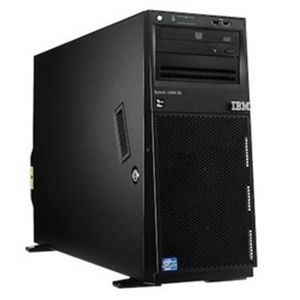

IBM System x3300 M4 |
P/N |
7382-B2A |
Form Factor |
Tower/4U (rack-mountable) |
Processor |
|
Processor |
Intel® Xeon® Processor |
Speed supported |
E5-2407 - 2.20 GHz |
# of Cores |
4 |
Cache size |
10M Cache |
DMI |
6.4 GT/s |
Upgradeability |
1/2 |
Memory |
|
Installed Size |
1x4GB |
Type |
PC3-10600 DDR3-1333 1Rx4 LP |
Maximum |
Up to 192 GB, 12 slots (UDIMM/RDIMM) |
Storage |
|
Optical Drive |
16x DVD-ROM SATA |
Hard Drive |
IBM 500GB 7.2K SATA HDD Hot-Swap (3.5") |
Graphic |
|
Graphic Memory |
16MB |
Expansion slots |
|
|
Up to six PCIe expansion slots; five PCIe slots standard, plus one additional PCIe slot when the second processor is populated. An optional PCI-X slot is available via an interposer conversion kit. |
Disk bays (total/hot-swap) |
|
|
Eight 2.5-inch hot-swap or four 3.5-inch hot/simple-swap bays standard, up to sixteen 2.5-inch hot-swap bays via optional upgrade kit, or eight 3.5-inch hot/simple-swap bays via optional upgrade kit |
Maximum internal storage |
|
|
16 TB of 2.5-inch hot-swap SAS/SATA drives (HDD upgrade options required) or 24 TB of 3.5-inch hot or simple-swap SAS/SATA HDDs |
Network interface |
|
|
Dual Gigabit Ethernet/TOE |
Power supply (std/max) |
|
|
one 460W fixed |
RAID |
|
Raid |
RAID 0, 1, 10 standard with the ServeRAID C105 |
support |
Integrated 3 Gbps software RAID-0, -1, -10 standard, optional 6 Gbps hardware RAID-0, -1, -10 or RAID-5, -50 or -6, -60 |
Ports |
|
|
6 USB, 4 Ethernet (2 Standard, 2 Additional via FoD),1 serial and video |
Systems management |
|
|
IBM IMM2 with optional upgrade FoD for remote presence, Predictive Failure Analysis, diagnostic LEDs, IBM Systems Director and Active Energy Manager™ (model dependent) |
Operating systems supported |
|
|
Microsoft Windows Server 2008 R2, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere Hypervisor |
